WMT Portable Waterjet Cutting Machine

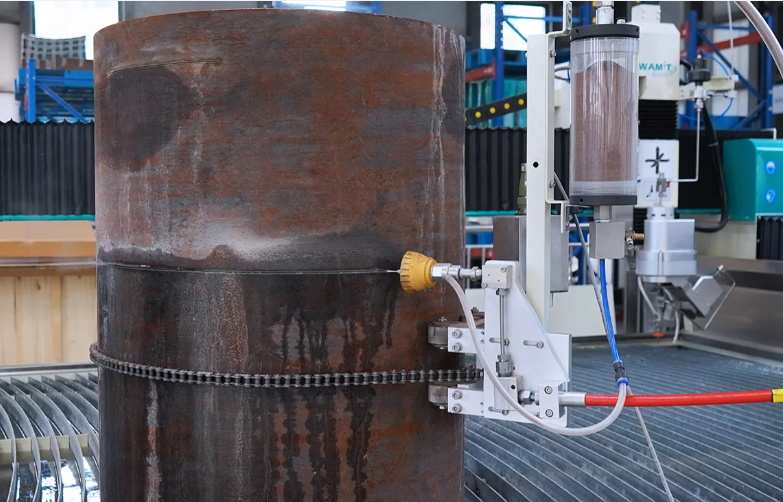

Portable water jet cutting machine with electricity, can be used for cleaning, rust removing and cutting. Pipe cutting, plate

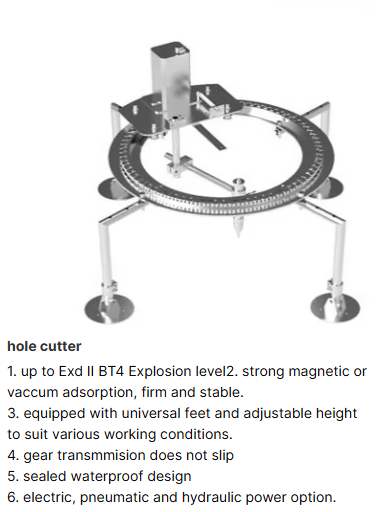

cutting,anchor cutter,hole cutting,light rail cutter, applied in Coal mine, Tunnel, high speed rescue, fire extinguishing,
small size, easy to move.
Specification:
1. Rated pressure is 60000psi
2. Working Pressure is 55000psi
3. Motor power is 15kw
4. Pump flow is 4L/min
5. Max. thickness is 200mm
6.Cutting speed10mm Plate: 270mm/min
7. Machine noise is 40db
8. Dimensions: 1000mm*1000mm*1000mm
9. whole machine weight is 1000kg
10. voltage :380V, 50HZ, 3 Phrase
10. Abrasive tank volume is 200L
11. Continuous working time: 24H
12. Medium: Pure water、Abrasive sand
13. Abrasive sand size is 80#,100#
14. Abrasive sand flow speed: 25kg/H
15. Nozzle diameter is 0.33 mm
16.water input pressure should be more than 0.4mpa
