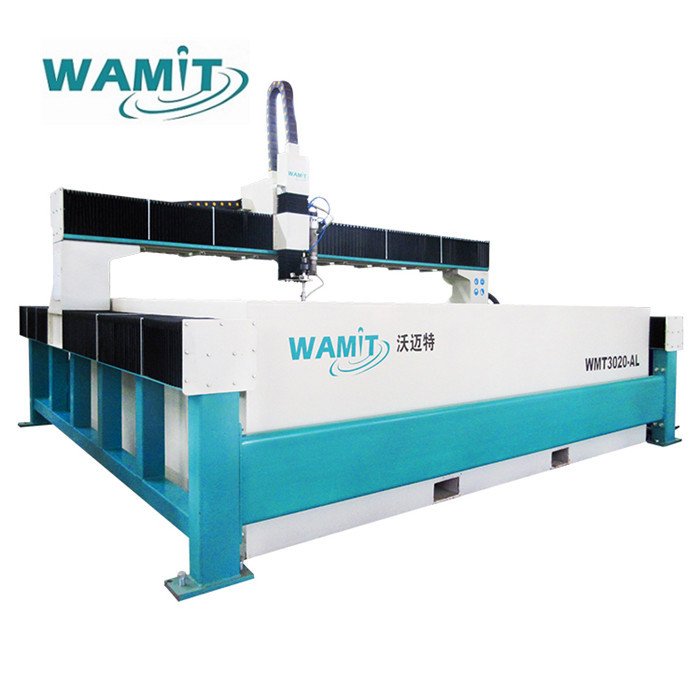

3000 * 2000 mm with 20 HP 15KW servo direct drive pump Abrasive Ceramic Tile water jet cutting Water Jet Cutter

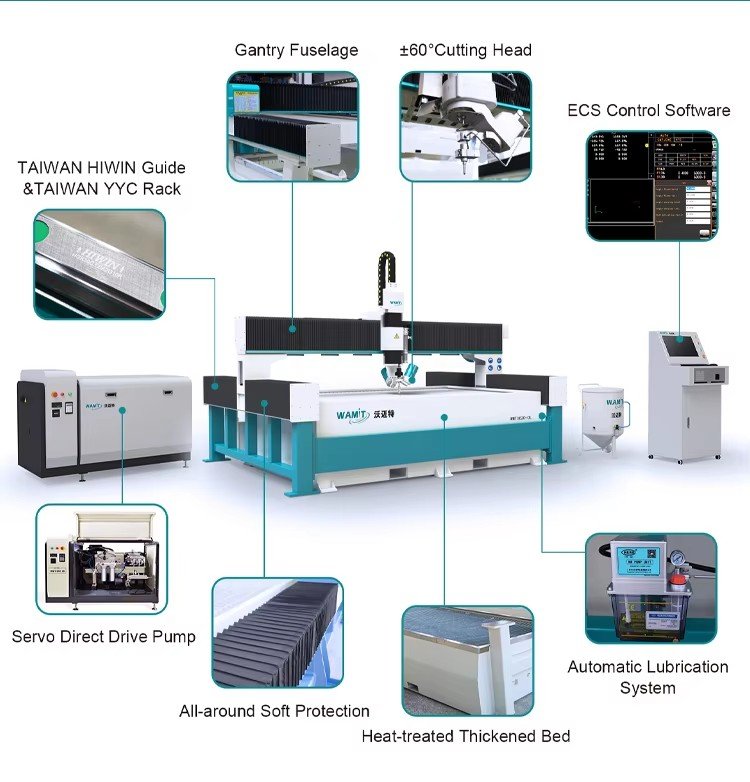

Water jet cutter advantages:
1. 37KW SIEMENS motor
2. All electric components are Schneider brand
3. Can do special size and special design according to customer’s demand
4. Free abrasive sand feeding system
5. We have most convenient automatic abrasive sand removing and recycling system for any brand water jet cutting machine
6. Imported intensifier pump
7. Use 8mm steel to make the cutting table stronger and keep the precision time for whole life
8. Soft cover for linear guider or gear and rack, can effectively prevent dust
9. Install an automatic oil tank for cutting table , no need maintenance of linear guider
10. Legitimate WINDOWS 7 system and install the Chinese newest water jet cutting system
11. HIWIN linear guider and ball screw
12. Variable servo pump can reduce the electricity cost
13. We have agents in India, America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam, and so on.
14. We can make machine moving speed to 10-50m/min which will improve your cutting efficiency
15. We are finding agent all over the world.
Water jet cutter pump:

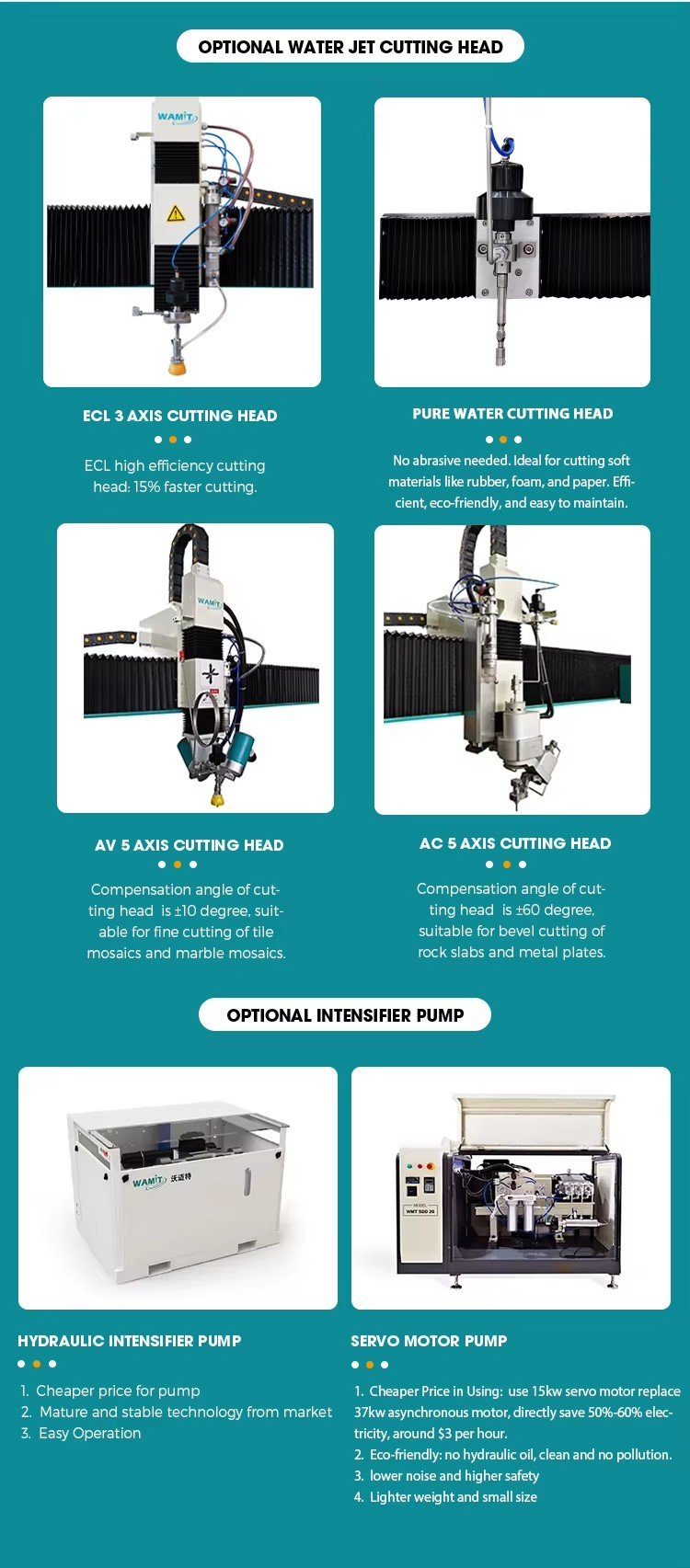

We have 420Mpa intensifier pump, 600Mpa intensifier pump ,direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality – efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one-year warranty of main parts, whole-life after-service for the entire machine.Our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.
Our Water Jet Cutter description:
| Name | Item | Parameter |
| Direct drive Pump
|
Model | WMT SDD 20 |
| motor | SIEMENS | |
| Method of Direction Regulation | Electronic direction regulation | |
| Pressure Range | 50-420MPA, continuous pressure is 330-380Mpa | |
| Maximum Flow of Hydraulic
Pump |
90 L/min | |
| Maximum Discharge Capacity | 3.5 L/min | |
| Maximum Diameter of Gem
Nozzle |
0.3 mm | |
| Power of Master Motor | 15 KW | |
| Power Source | 380V/50HZ, also work at 220V/60HZ, 415V | |
| Cutting Table | X axis Characteristic | use strong 10MM steel, 3000MM cutting range. The cutting table width is 3200mm |
| Y axis Characteristic | Cast iron is used as the foundation base , 2000MM cutting range . The cutting table length is 2200mm. | |
| Z axis Characteristic | Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM | |
| Control Accuracy | ±0.01mm, cutting accuracy is
±0.1mm, reposition accuracy: ±0.02mm, max travelling speed:6000mm/min, we have new technology that can make the travelling speed 20-30m/min. |
|
| linear guider | TAIWAN HIWIN BRAND | |
| Table Ctructure | Separated body, can be delivered by one 20’FCL container | |
| Driving Way | Servo drive system | |
| CNC system | Ncstudio ,Fagor | |
| Servo Motor | SIEMENS motor | |
| Cutting Head | Casting structure and Concrete structure | |
| Sealing Way | soft dustproof cloth on X,Y,Z axis,the sealing
result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence. |
|
| Loading Weight Water Tank | Wall thickness is 6mm,using fluorocarbon
coating, Can antirust at least 5 years. |
|

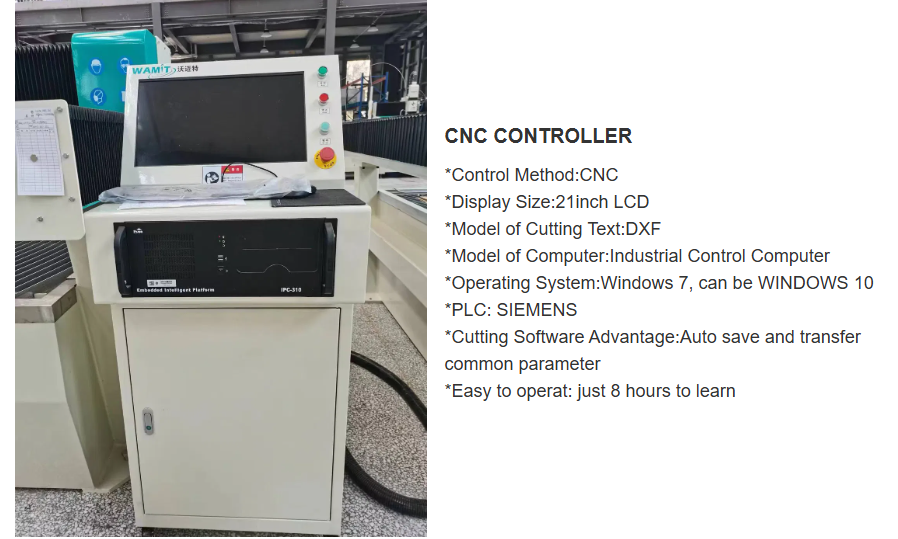

| CNC Controller | Control Method | CNC |
| Display Size | 21inch LCD | |
| Model of Cutting Text | DXF | |
| Model of Computer | Industrial Control Computer | |
| Operating System | Windows 7 | |
| PLC | SIEMENS | |
| Cutting Software Advantage | Auto save and transfer common parameter | |
| Controller Displace | Can be fit to suitable place at own will | |
| Automitic Abrasive
Feeder |
Founction | Sand storage and sand delivery |
| Operating | No need electrocnic control,sample operation | |
| Capacity | 200 kg for 8 -10hours | |
| Pressure | 0.3-0.6Mpa compresses gas pressure | |
| Color | White | |
|
Deionization System |
Water pressure | 0.15Mpa~0.6Mpa |
| Water temperature | 5°C~50°C | |
| Environment temperature | 5°C~50°C | |
| Relative humidity | ≤95%(25°C) | |
| Water turbidity | <20FTU | |
| Wireless Handle | Founction | Wireless controlling waterjet |
| Display | Real- time display condition of X,Y,Z axis | |
| Settings | Zero point, on/off valve set, X,Y,Z axis moving | |
| Technology | Advanced technology |
