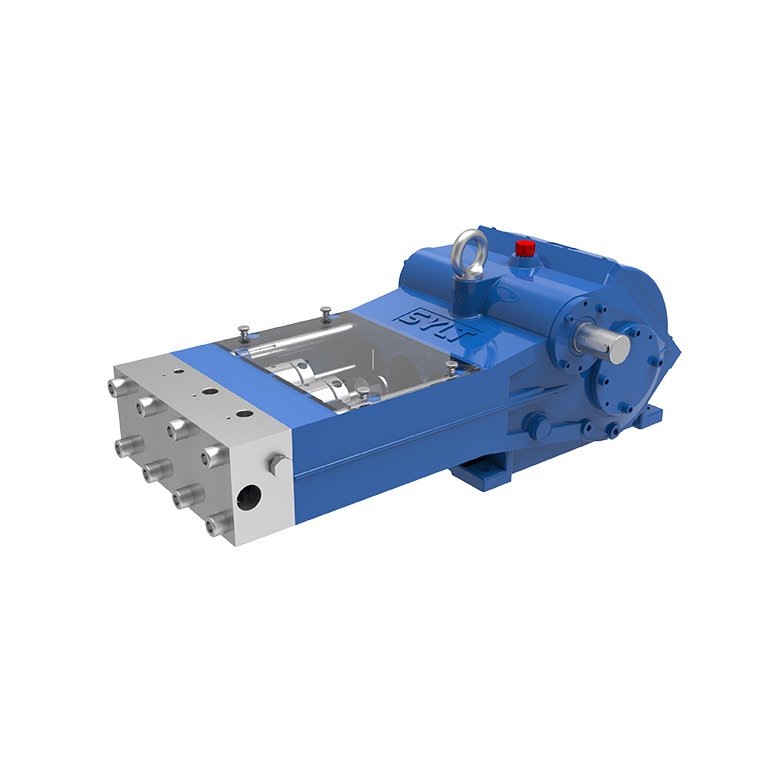

RELIABLE high pressure plunger pump RLB315

Model Specifications	Motor					Diesel Engine III
	Input Speed r/min		Pump Speed r/min			Input Speed r/min		Pump Speed r/min
	1480		366			1800		389
	Flow Rate		Output Pressure at Rated Power MPa			Flow Rate		Output Pressure at Rated Power MPa
	L/min	m³/h	200KW	250KW	315KW	L/min	m³/h	220KW	266KW	345KW
RLB315-19	39	2.4	280	–	–	42	2.5	–	280	–
RLB315-21	48	2.9	240	280	–	51	3.1	–	250	280
RLB315-24	63	3.8	180	200	–	66	4.0	180	200	–
RLB315-26	73	4.4	140	180	200	80	4.8	140	150	200
RLB315-28	85	5.1	120	150	180	90	5.4	130	140	160
RLB315-30	95	5.9	110	140	160	110	6.6	110	120	140
RLB315-32	110	6.6	100	120	140	120	7.2	90	100	120
RLB315-34	120	7.2	90	110	130	130	7.8	90	100	110
Weight: 1130kg Import: G1 1/2″ Export: M24×1.5 24° cone 1 1/8″-12UNF-2B
