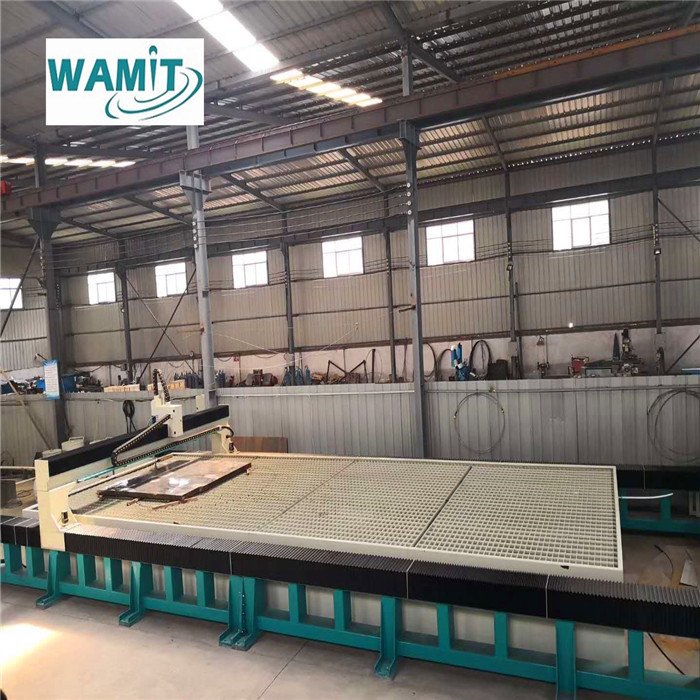

4000*10000mm Table 3 AXIS CNC Water Jet Cutter With 420Mpa Intensifier Pump

Servo Motor: Yaskawa
Dimension(L*W*H): 4200 Mm*10200 Mm
Control Accuracy: ±0.05mm
Way Of Drive: Servo Motor And Driver
Linear Guider:: Imported From TAIWAN HIWIN
After-sales Service P: Field Maintenance And Repair Service
Weight (KG): 4500
Warranty: 1 Year
Voltage: 220V/380V/415V
Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Machinery Repai
Brand Name:: WAMIT
Key Selling Points: Competitive Price
Highlight:

4000*10000mm Table Water Jet Cutter

3 AXIS cnc water jet cutter

3 AXIS cnc water jet cutting machine

3 AXIS 4000 * 10000 mm Large table machine with 420 mpa intensifier pump water jet cutting machine water jet cutter
Water jet cutter description :



Name Item Parameter
Intensifier Pump



Model WMT3742Z
motor SIEMENS
Method of Direction Regulation Electronic direction regulation
Pressure Range 50-420MPA, continuous pressure is 330-380Mpa
Maximum Flow of Hydraulic

Pump

90 L/min
Maximum Discharge Capacity 3.7 L/min
Maximum Diameter of Gem

Nozzle

0.33 mm
Power of Master Motor 37 KW
Power Source 380V/50HZ, also work at 220V/60HZ, 415V
Cutting Table X axis Characteristic use strong 10MM steel, 4000MM cutting range. The cutting table width is 4200mm
Y axis Characteristic Cast iron is used as the foundation base , 10000MM cutting range . The cutting table length is 10200mm.
Z axis Characteristic Z axis double linear guide and four sliding block , 180MM, CAN DO 200MM
Control Accuracy ±0.01mm, cutting accuracy is

±0.1mm, reposition accuracy:

±0.02mm, max travelling speed:6000mm/min,

we have new technology that can make the travelling speed 20-30m/min.

linear guider TAIWAN HIWIN BRAND
Table Ctructure Separated body, can be delivered by one 20’FCL container
Driving Way Servo drive system
CNC system Ncstudio ,Fagor
Servo Motor SIEMENS motor
Cutting Head Casting structure and Concrete structure
Sealing Way soft dustproof cloth on X,Y,Z axis,the sealing

result will be better,and there is a oil tank under the cutting table,the linear guider no need maintainence.

Loading Weight Water Tank Wall thickness is 6mm,using fluorocarbon

coating, Can antirust at least 5 years.

CNC Controller Control Method CNC
Display Size 21inch LCD
Model of Cutting Text DXF
Model of Computer Industrial Control Computer
Operating System Windows 7
PLC SIEMENS
Cutting Software Advantage Auto save and transfer common parameter
Controller Displace Can be fit to suitable place at own will
Automitic Abrasive

Feeder

Founction Sand storage and sand delivery
Operating No need electrocnic control,sample operation
Capacity 200 kg for 8 -10hours
Pressure 0.3-0.6Mpa compresses gas pressure
Color White


Deionization System

Water pressure 0.15Mpa~0.6Mpa
Water temperature 5°C~50°C
Environment temperature 5°C~50°C
Relative humidity ≤95%(25°C)
Water turbidity <20FTU
Wireless Handle Founction Wireless controlling waterjet
Display Real- time display condition of X,Y,Z axis
Settings Zero point, on/off valve set, X,Y,Z axis moving
Technology Advanced technology



The working principle of our water jet cutter:



The basic working principle of ultra-high pressure waterjet is simple and extremely complicated. The key to the formation of ultra-high-pressure water is the high-pressure pump. The low pressure oil from the oil pump pushes the large piston of the supercharger to make it reciprocate. The moving direction of the big piston is automatically controlled by the reversing valve. On the other hand, the water supply system is purified first, and then the low-pressure water is pumped out by the water pump. After the low-pressure water entering the booster is pressurized by the small piston, the pressure rises. Because the high-pressure water is produced after the supercharger is continuously compressed back and forth, and the piston of the supercharger needs to be reversed, the pressure of the water jet emitted from the nozzle is pulsating. (Water cutting processing) In order to obtain a stable high-pressure water jet, it is necessary to make the generated high-pressure water enter an accumulator, and then flow to the nozzle, so as to achieve the purpose of stabilizing the pressure. The basic working principle of waterjet is simple and extremely complicated by ordinary water ultra-high pressure waterjet. The key to the formation of ultra-high-pressure water is the high-pressure pump.



The low pressure oil from the oil pump pushes the large piston of the supercharger to make it reciprocate. The moving direction of the big piston is automatically controlled by the reversing valve. On the other hand, the water supply system is purified first, and then the low-pressure water is pumped out by the water pump. After the low-pressure water entering the booster is pressurized by the small piston, the pressure rises. Because the high-pressure water is produced after the supercharger is continuously compressed back and forth, and the piston of the supercharger needs to be reversed, the pressure of the water jet emitted from the nozzle is pulsating. (Water cutting processing) In order to obtain a stable high-pressure water jet, it is necessary to make the generated high-pressure water enter an accumulator, and then flow to the nozzle, so as to achieve the purpose of stabilizing the pressure. The water jet is made by ordinary water passing through an ultra-high pressure pressurizer to pressurize the water to 4,000 bar (60,000 psi), and then passing through a very small nozzle (with a diameter of about 0.1mm to 0.4mm) to produce a speed per second A water arrow that is nearly a kilometer (about three times the speed of sound). This water arrow is like a sharp sword for cutting, cutting the workpiece that needs to be processed.

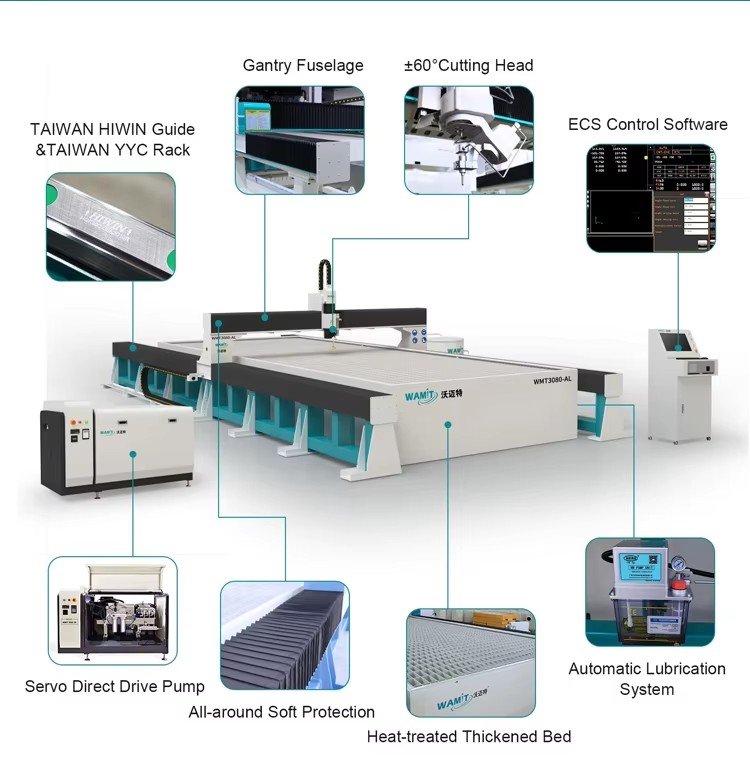

The composition of waterjet processing equipment includes: ultra-high pressure pump, waterjet cutting head device, waterjet X-Y movable plane cutting table, CNC controller and CAD/CAM software package, etc. The key equipment is: the ultra-high pressure pump increases the water pressure to be able to cut a variety of materials, the higher the pressure, the more it can penetrate a variety of different materials; the waterjet cutting head device contains a small diameter gem nozzle, usually Red or sapphire, this kind of jewel nozzle is inlaid in the metal material, and the nozzle is installed on a shelf that can be adjusted up and down, so that the high-pressure water arrow can accurately pass the position to be processed without damaging any other parts of the workpiece. This is also an important factor to ensure the accuracy of waterjet cutting. After an ultra-high pressure pressurizer, the water is pressurized to 4,000 bar (60,000 psi), and then passed through a very small nozzle (with a diameter of about 0.1mm to 0.4mm), generating a velocity of nearly kilometers per second (about the speed of sound) Three times the water arrow. This water arrow is like a sharp sword for cutting, cutting the workpiece that needs to be processed.



The composition of waterjet processing equipment includes: ultra-high pressure pump, waterjet cutting head device, waterjet X-Y movable plane cutting table, CNC controller and CAD/CAM software package, etc. The key equipment is: the ultra-high pressure pump increases the water pressure to be able to cut a variety of materials, the higher the pressure, the more it can penetrate a variety of different materials; the waterjet cutting head device contains a small diameter gem nozzle, usually Red or sapphire, this kind of jewel nozzle is inlaid in the metal material, and the nozzle is installed on a shelf that can be adjusted up and down, so that the high-pressure water arrow can accurately pass the position to be processed without damaging any other parts of the workpiece. This is also an important factor to ensure the accuracy of waterjet cutting.
