“Water jet cutting allows for precision in cutting and shaping materials, and it does so without generating heat or deformation while cutting. However, it has limitations in terms of the thickness and depth of the pockets.”
Waterjet cutting uses the power of high-pressure water to cut and shape materials, while the water may be mixed with abrasive particles. Waterjet cutting’s ability to cut without generating heat or mechanical stress makes it a top choice across a variety of industries. However, analyzing the pros and cons of waterjet cutting is essential to deciding whether it fits your requirements.
Basics of water jet cutting
- Water jet cutting This method is compatible with different materials, including metal, stone and glass, and does not generate heat or mechanical stress. First a high-pressure water stream is generated. Then, it is focused through a narrow nozzle to increase its speed. After adding abrasives, the cutting power is significantly enhanced. Therefore, it can cut hard materials such as steel or granite.
In addition, you can control and create complex shapes and fine details. The integration of Computer Numerical Control (CNC) technology takes waterjet cutting to the next level, automating the cutting process with exceptional precision and repeatability.
What is a water jet cutting machine?
A water jet cutting machine is an advanced tool that uses high pressure water, often in combination with abrasive particles. The machine cuts without the need for heat, preserving the inherent properties of the material.
The core components of a water jet cutting machine include a high-pressure pump, a cutting table, a CNC controller, and a cutting head that holds the nozzle. The high-pressure pump is critical because it pushes the water at a speed that can cut through steel, stone, and composite materials. The cutting table supports the material, while the CNC controller coordinates the movement of the cutting head according to the digital design, allowing for complex and precise cuts.

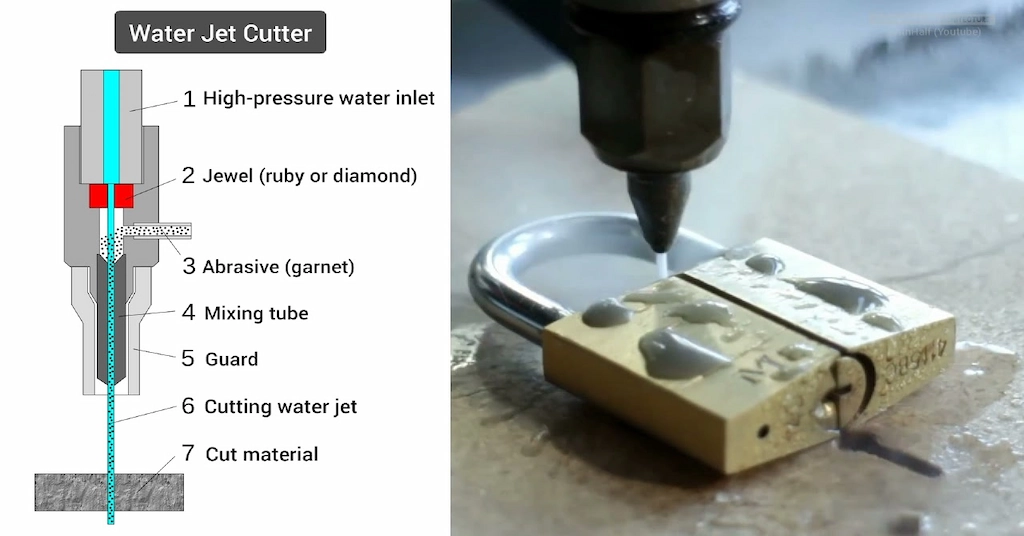

The operation of a water jet cutting machine begins with a high-pressure pump forcing water through a tiny nozzle in the cutting head. When abrasive cutting is required, garnet or a similar abrasive is added to the water in the nozzle. Next, the water jet flows at speeds of up to Mach 3, cutting through the material with minimal waste and no heat distortion.
What are the advantages of water jet cutting?
Waterjet cutting is a versatile and precise machining method that stands out in the manufacturing and fabrication industries for its many benefits. The technology offers unparalleled flexibility in cutting shapes and designs, making it extremely valuable for complex projects.
Here are six key benefits of waterjet cutting.
- No Heat Affected Zone (HAZ)
One of the most notable advantages of waterjet cutting is the absence of a heat-affected zone. Conventional cutting methods typically generate high temperatures that change the properties of the material and can weaken the strength of the cut area.
However, waterjet cutting maintains the integrity of the material. This ensures that the properties of the workpiece remain unchanged. This is especially important for materials that are susceptible to thermal deformation.
- Diversity in Material Compatibility
Waterjet cutting is exceptional in its ability to handle different materials. This method can effectively cut, without the need for multiple tools, everything from metals, plastics, glass to composites and stone.
This versatility eliminates the need to invest in different types of cutting equipment for various materials, making waterjet cutting a cost-effective solution for workshops and manufacturers. As a result, it opens up creative possibilities across industries, allowing for complex designs using different materials.
- Precision and Complexity
The precision of waterjet cutting is another compelling advantage. It can achieve tolerances as tight as ±0.005 inches. As a result, waterjet can achieve complex cuts and intricate shapes that would be challenging or impossible with other cutting methods.
This high level of accuracy is essential for industries where precision is critical, such as waterjet aerospace applications, complex designs in the decorative industry, or detailed components in the aerospace and technology fields.
- Minimum Material Waste
Waterjet cutting is inherently efficient and produces minimal cuts, thereby saving material. Unlike traditional methods that may require a larger cutting width, the narrow waterjet ensures that more material is available. Therefore, this method reduces waste and saves costs.
This advantage is particularly beneficial when working with expensive materials, where maximizing production output is critical. In addition, the ability to nest parts closely together when cutting further optimizes material use, improving overall sustainability and cost-effectiveness.
- Environmentally Friendly
The environmentally friendly nature of waterjet cutting is a noteworthy advantage. Because it produces no hazardous waste and primarily uses water as the cutting medium, it minimizes environmental impact compared to processes that produce dust, fumes, or thermal deformation.
This approach is in line with the growing emphasis on sustainable manufacturing practices. Therefore, it is an attractive option for environmentally conscious businesses
- Safe and Clean Process
Because it does not produce fumes, dust, or other harmful byproducts, it creates a healthier working environment for operators. The cold cutting process also reduces the risk of burns or fires, improving workplace safety. This clean operation benefits workers, reduces the time and resources spent on cleaning and maintenance, and contributes to a more efficient and safer production process.
Waterjet Cutting Services Tailored to Your Needs
Shandong Wami CNC Technology Co., Ltd.’s waterjet cutting services stand out for their customized approach to meeting our customers’ needs. We utilize advanced waterjet technology to provide precision cutting for over 100 materials. Ideal for projects that require complex designs or delicate materials, this approach ensures high-quality results without heat damage or material deformation.
Our engineers work closely with our customers to ensure specifications are met with precision. We have more than a decade of experience working with industries ranging from aerospace to custom manufacturing. In addition, you can benefit from working with Shandong Wami CNC Technology Co., Ltd. because we value precision, adaptability, and sustainability.
Related News: Laser Cutting vs. Waterjet Cutting: Analyzing Capabilities in the Manufacturing Field
FAQ
What materials can water jet technology cut?
Water jet technology can cut virtually any material, including metal, glass, stone, plastic and composites.
How does water jet cutting compare to laser cutting in terms of accuracy?
Water jet cutting offers comparable accuracy to laser cutting, with the added benefit of cutting thicker materials and a variety of types.
Can water jet cutting be used for thick materials?
Yes, water jet cutting excels at cutting thick materials and can cleanly cut materials that are difficult to cut with other methods.
What are the environmental benefits of using water jet cutting?
Water jet cutting is environmentally friendly, does not produce hazardous waste, and uses recyclable water and abrasives.
How does the cost of water jet cutting compare to traditional cutting methods?
Water jet cutting may be more expensive initially, but savings can be realized through accuracy, versatility and reduced material waste.
